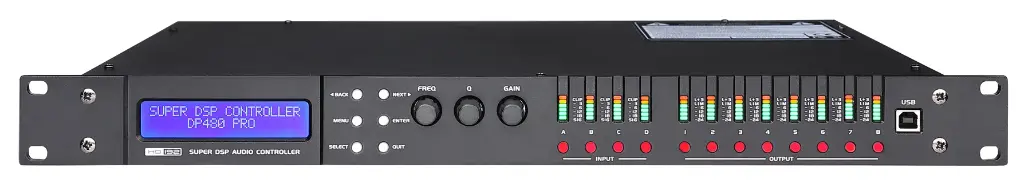

音箱数字处理器
◆4 balanced input, 8 balanced output (NDP480). ◆3 balanced input, 6 balanced output (NDP360). ◆2 balanced input, 6 balanced output (NDP260). ◆2 balanced input, 4 balanced output (NDP240). ◆ Maximum input level: 15dBu - +22dBu ◆ Common mode rejection ratio (CMRR): > 65dB@1kHz ◆ 56-bit DSP chip, 192kHz sampling frequency, 24bit ADC/DAC converter ◆ SNR (S/N): > 110dB < 0.006%@1kHz, +4dBu ◆ Input channels include: gain, phase, 31-segment GraphicEQ, 15-segment Multi-Type Filter, noise gate, maximum 1300ms (446 m) delay. ◆ Output channels include: CrossOver Filter, 15-segment Multi-Type Filter, gain, phase, maximum 680 ms (233 m) delay, limiter, compressor. ◆ Delay adjustment minimum 5 microseconds (0.1 cm) adjustment step, filter frequency adjustment accuracy 1Hz. ◆ Multi-functional filter types include: Parametric Equalizer (Parametric Equalizer) high-frequency shelf filter (HiShelf-6dB, HiShelf-12dB, HiShelf-Q) low-frequency shelf filter (LoShelf-6dB, LoshelF-6dB, HISHELF-Q) LoShelf-12dB, LoShelf-Q) First-order all-pass filter (Allpass-90), second-order all-pass filter (Allpass-180) Bandpass filter (Bandpass), Notch variable Q-value High-pass filter (Highpass VariQ), variable Q-value low-pass filter (Lowpass) ◆ Frequency division filter types include: Butterworth, Bessel, Linkwitz-Riley, slope maximum support 48dB/Oct. ◆ Computer software supports parameter replication between channels, linkage adjustment function. It also supports batch import and export of preset parameters. ◆ Speaker manufacturer parameter locking hidden (intellectual property protection) (factory mode and user mode separate). ◆ The running time of the equipment can be set (cumulative time). ◆ Support energy saving control: turn off the front panel display and LED lights regularly when the movie scene is applied. ◆ Optional lock Settings, support external control protocol (ESRP). ◆USB, RS232, RS485 control port. ◆ Imported Neutrik Cannon connector.
| 品牌: 声界 |
| 型号: 0.57*0.48*0.37 |
