- 8-way mixer (2 sets per piece)

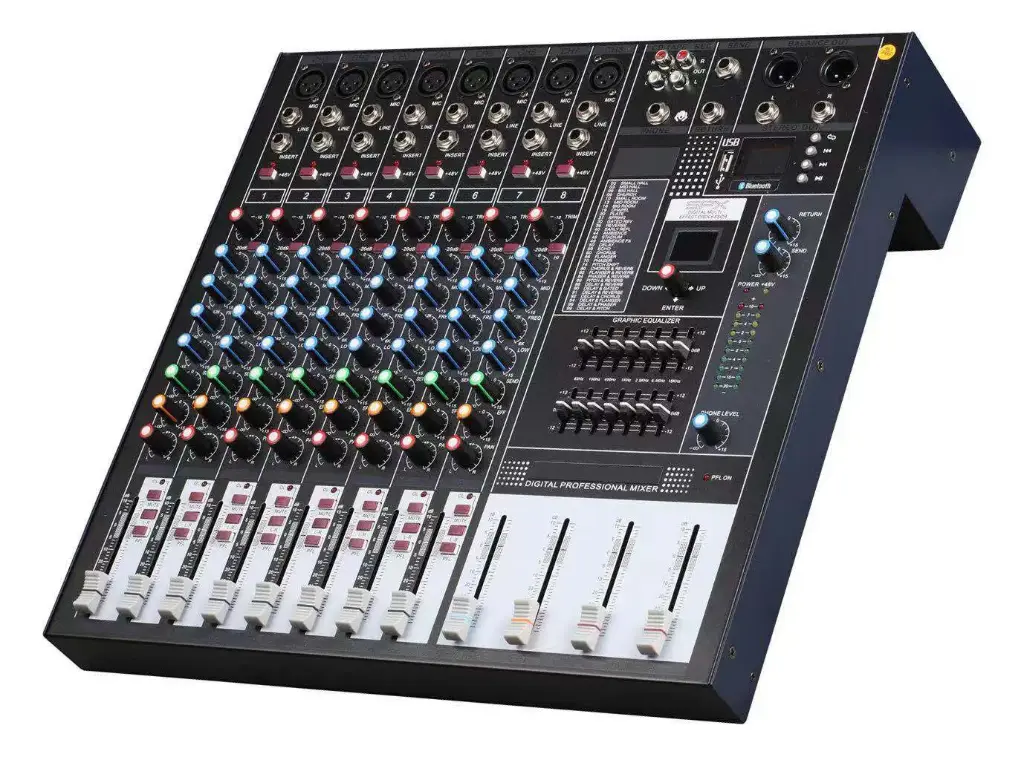

8-way mixer (2 sets per piece)
https://ipscm.com/shop/mr-8300-8-way-mixer-2-sets-per-piece-954 https://ipscm.com/web/image/product.template/954/image_1920?unique=c59c73dFunctional features: 1, 8 microphone input 2, independent 48V phantom power supply 3, 3 segments of each channel balance 4, USB input, With lyrics display 5, built-in Bluetooth module 6, built-in DSP99 effects with LED display 7, can be connected to external digital effects peripheral equipment 8, double seven equalizer 9, support a key recording function 10, a set of auxiliary expansion output 11, each with a key mute function 12, each way before the fader monitoring 13, every road has a key control the main output parameters in detail: the input sensitivity: 40-60 DBM ~ - DBM microphone input level: + 16 is a line input level: + 3 DBM input level MAX: 19 DBM signal-to-noise ratio: 80 db frequency response: 20 hz - 20 KHZ plus or minus 3 db gain control: mono - 26 db, 0 db headphones: 7 v / 220 balance adjustment: High frequency ±15dB/12KHz Medium frequency ±15dB/2.5KHz Low frequency ±15dB/80KHz Power supply: AC220-240V/50-60Hz Net weight 6.2Kg Size: 43.2*40.8*11.1*4.6 Package Size: 50.5 * * 20
1、8路话筒输入
2、独立48V幻像电源供电
3、每声道3段均衡
4、USB输入,带歌词显示
5、内置蓝牙模块
6、内置DSP99种效果带LED显示
7、可外接数字效果周边设备
8、双七段均衡器
9、支持一键录音功能
10、一组辅助扩展输出
11、每路设有一键静音功能
12、每路推子前监听
13、每路设有一键控制主输出
详细参数:
输入灵敏度:-60dBm~ -40dBm
话筒输入电平:+16dBu
线路输入电平:+3dBm
输入电平MAX:19dBm
信噪比:80dB
频率响应:20Hz-20KHz±3dB
增益控制:单声道-26dB、0dB
耳机:7V/220欧
均衡调节:高频±15dB/12KHz 中频±15dB/2.5KHz 低频±15dB/80KHz
电源:AC220-240V/50-60Hz
净重 6.2Kg
尺寸:43.2*40.8*11.1*4.6
包装尺寸:50.5*49*20
Brand: REGGERE |
Size: 50.5*49*20 |
