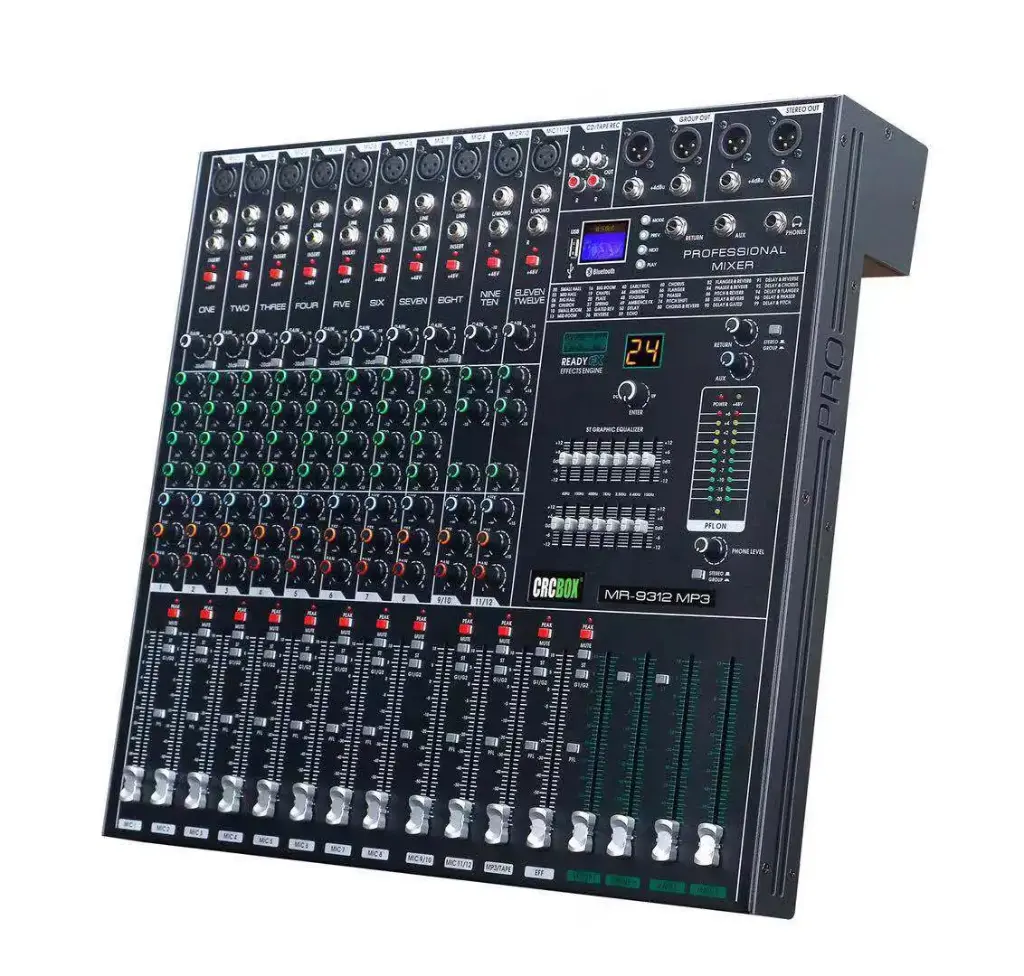

12-way mixer (2 sets per piece)

https://ipscm.com/web/image/product.template/957/image_1920?unique=739c37d

Functional features: 1, 12 microphone input, 8 mono, 2 groups of stereo sound, 2 groups of independent output, 1 AUX auxiliary output 2, each independent 48V phantom power supply 3, each channel 3 balanced 4, USB input, with lyrics display 5, built-in Bluetooth module 6, Support one-click recording function 7, built-in DSP99 effects with LED display 8, can be connected to digital effects peripheral equipment 9, double seven-stage equalizer 10, 100 stroke mm fader 11, MP3 volume independent fader control 12, each with a key mute function 13, each way is equipped with peak signal display light 14, each way is provided with a key control of the main output and grouping output 15. Monitor before each fader 16, the use of external transformer power supply, less interference, better static noise. Detailed parameters: Input sensitivity: -60dBm~ -40dBm Microphone input level: +16dBu Line input level: +3dBm Input level MAX:19dBm SNR: 80dB Frequency response: 20Hz-20KHz±3dB Gain control: mono -26dB, 0dB Headphones: 7V/220 euros Balance adjustment: high frequency ±15dB/12KHz medium frequency ±15dB/2.5KHz Low frequency ±15dB/80KHz Power supply: AC220-240V/50-60Hz Length width height: 50*47.5*11 CM Net weight: 7.5KG Size: 50*48*11CM Packing size: 55*55*19.5

1、12路话筒输入、8路单声道,2组立体声、2编组独立输出、1个AUX辅助输出

2、每路独立48V幻像电源供电

3、每声道3段均衡

4、USB输入,带歌词显示

5、内置蓝牙模块

6、支持一键录音功能

7、内置DSP99种效果带LED显示

8、可外接数字效果周边设备

9、双七段均衡器

10、100行程mm推子

11、MP3音量独立推子控制

12、每路设有一键静音功能

13、每路设有峰值信号显示灯

14、每路设有一键控制主输出和编组输出

15、每路推子前监听

16、采用的是外置变压器电源,干扰更少,静噪更好。

详细参数:

输入灵敏度:-60dBm~ -40dBm

话筒输入电平:+16dBu

线路输入电平:+3dBm

输入电平MAX:19dBm

信噪比:80dB

频率响应:20Hz-20KHz±3dB

增益控制:单声道-26dB、0dB

耳机:7V/220欧

均衡调节:高频±15dB/12KHz 中频±15dB/2.5KHz

低频±15dB/80KHz

电源:AC220-240V/50-60Hz

长宽高:50*47.5*11 CM

净重:7.5KG

尺寸:50*48*11CM

包装尺寸:55*55*19.5
